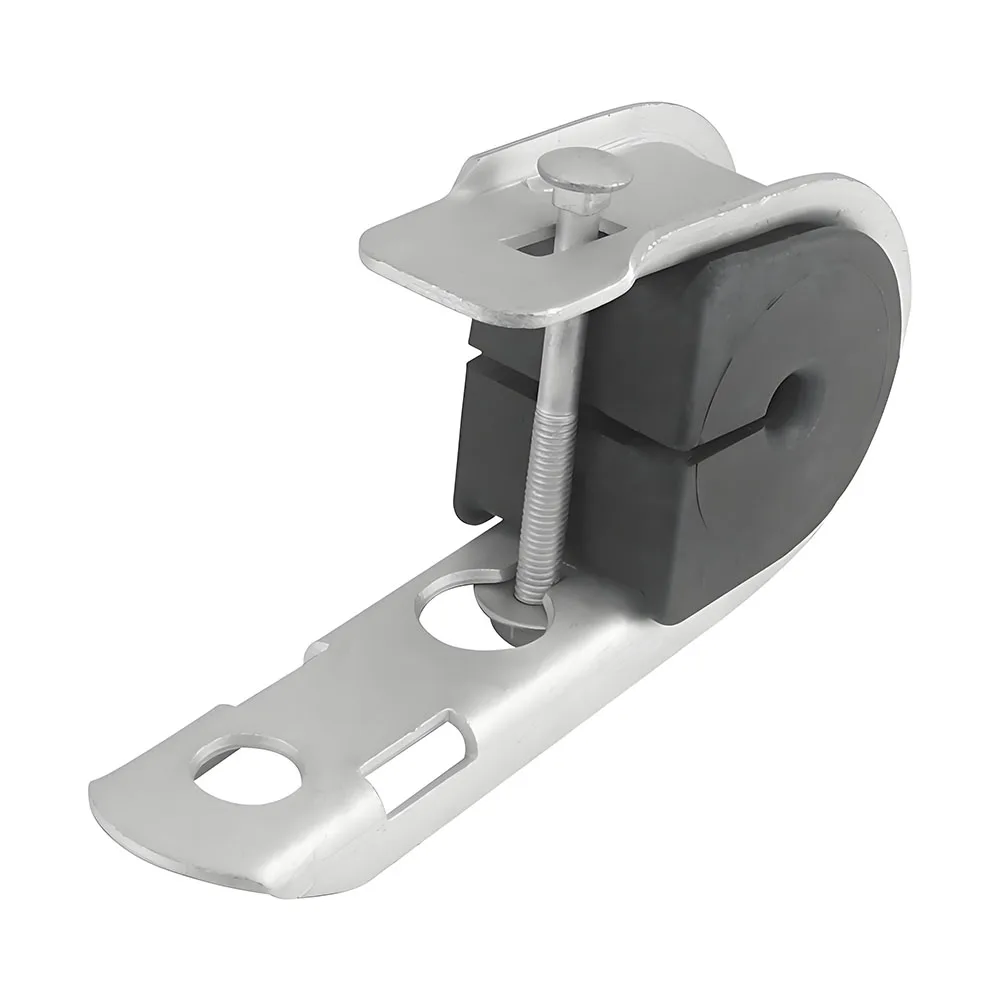

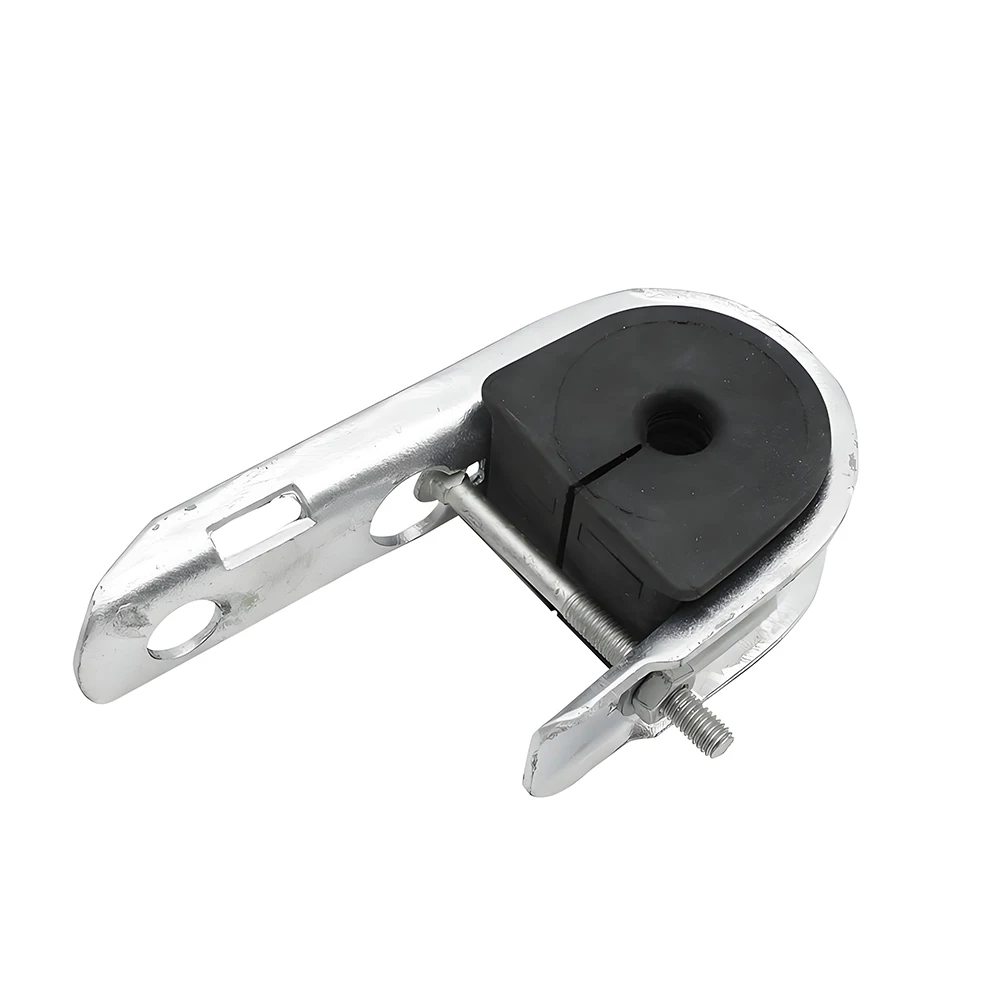

13KN ADSS Cable Suspension Clamp With Neoprene Insert

13KN ADSS Cable Suspension Clamp With Neoprene Insert

Sku. TJ01
$ 2.51 $ 2.51 save   $0.00
Quantity:
- +
piece(s)
( Min. Order 1000 )
Stock:
100000 in Stock
Shipping:
$ 1.72
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : 0-27 working days. See details
Total Price:
$ 2,510 $ 2,510 (Save and Extra $0.00 )

Shipping calculated at checkout.

Buy Now
Add to Cart

Add to Inquiry List

#
/ piece
Request For Quotation Continue Shopping
This item is collected in wish list
13KN ADSS Cable Suspension Clamp With Neoprene Insert

Choose your location Shipping Inquiry
Ship to:

United States

Delivery Options and delivery speeds may vary for different locations.

  • Carrier

    CostDelivery TimeTracking

  • ePacket

    $ 1.72 0-27 daysAvailable

  • 4PX Express

    $ 3.45 0-27 daysAvailable

  • China Post Air Mail

    $ 14.21 0-27 daysAvailable

  • China Post Air Parcel

    $ 22.98 0-27 daysAvailable

  • EMS

    $ 34.8 0-27 daysAvailable

  • Fedex IP

    $ 44.65 0-27 daysAvailable

  • DHL

    $ 53.93 0-27 daysAvailable

  • UPS Express Saver

    $ 89.78 0-27 daysAvailable

You’ll see exact shipping costs and arrival dates when you checkout.
13KN ADSS Cable Suspension Clamp With Neoprene Insert

13KN ADSS Cable Suspension Clamp With Neoprene Insert

Requirement Details

Your message must be between 20-3,000 characters!

Email

Check your email

Phone

Check your phone number

Submit Requirement
  • Description
  • Specification
  • Q & A
  • Customer Reviews
  • Shipping Policy
  • Wholesale Inquiry
This product is a J-Type Tension Clamp specifically designed for ADSS (All-Dielectric Self-Supporting) optical cable systems, also known as J-type strand or single/double-eye J-type fitting. It is primarily used for the termination
of ADSS cables at tower endpoints, anchoring at angle towers, and securing cable splice points. The product transfers the cable's tension to the tower via a preformed helix structure or aluminum alloy clamping mechanism. Its core value lies in providing a lasting grip, evenly distributing stress to protect the cable from damage, and ensuring long-term, stable operation of the cable line under complex climatic conditions and tension loads.
Basic Product Information
Item
Details
Product Name
J-Type Tension Clamp for ADSS Optical Cable (Single/Double Eye)
Applicable Cable
All-Dielectric Self-Supporting (ADSS) Optical Cable
Applicable Standard
DL/T 767-2013 - Technical conditions and test methods for preformed fittings for ADSS optical cables, compliant with relevant industry standards such as DL/T 767, YD/T 627.
Structure Type
J-Type suspension structure, single/double-eye design, adaptable for single or parallel installation of two cables.
Main Color
Metallic bracket: Galvanized silver-gray; Liner: Black.
Operating Temperature
-40℃ ~ +80℃
Key Product Features

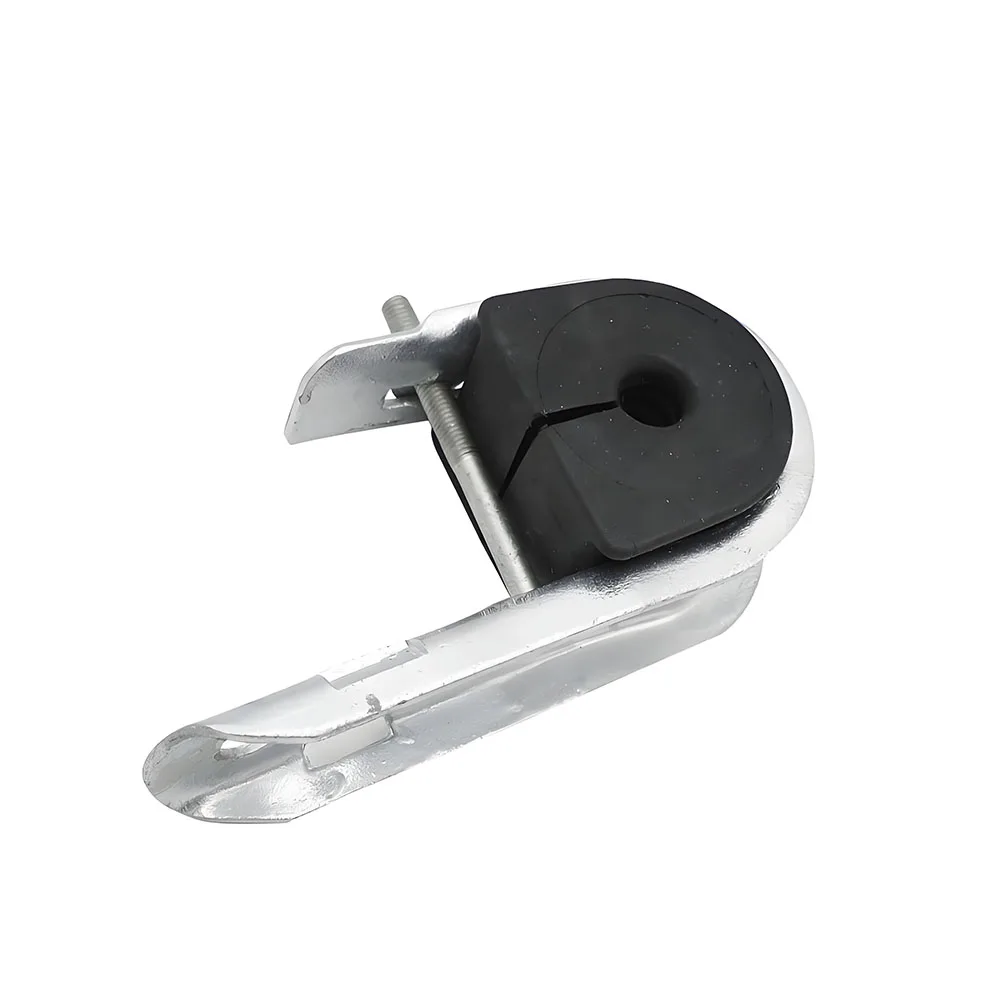

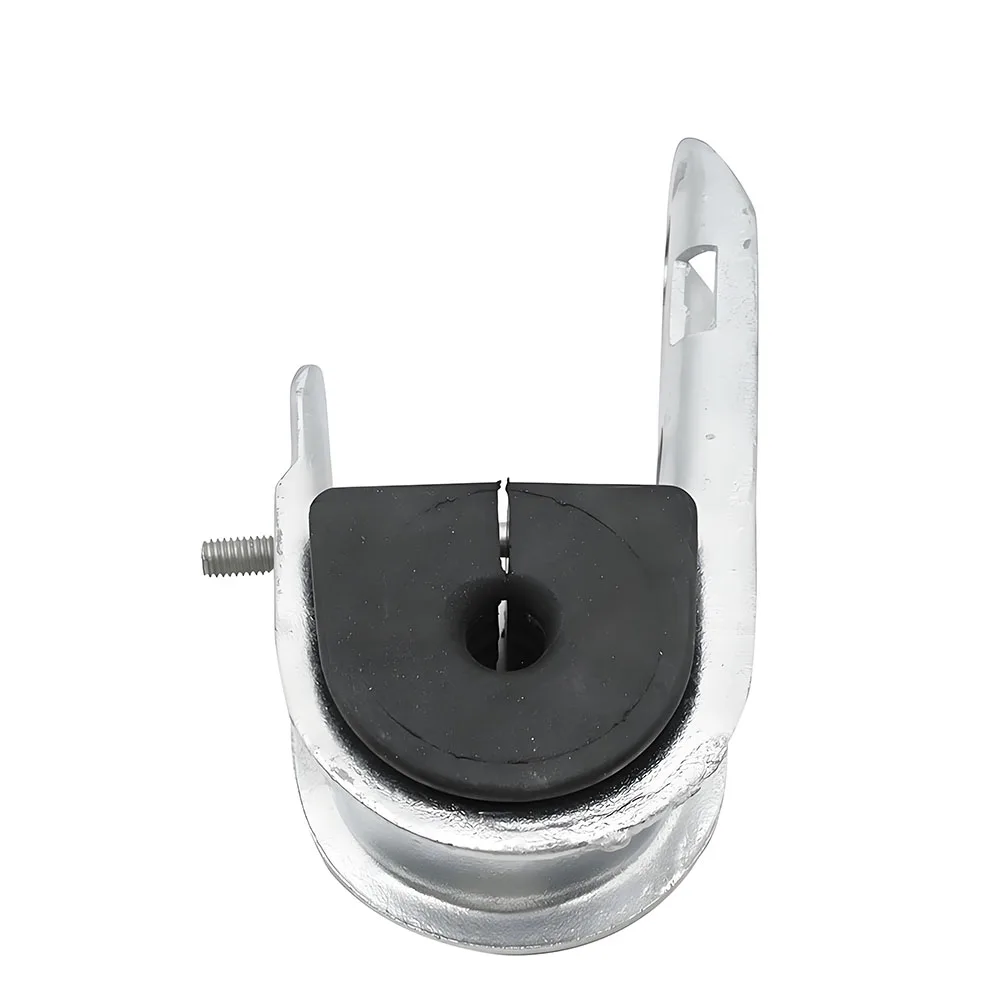

13KN ADSS Cable Suspension Clamp With Neoprene Insert
13KN ADSS Cable Suspension Clamp With Neoprene Insert
Simple Structure, Easy Installation:
Utilizes a "J"-shaped hook design for quick opening and closing without specialized tools, significantly reducing operational difficulty and time for installers on towers.
Dual Protection Mechanism:
Features high wear-resistant rubber pads or curved stainless steel inserts inside the clamping area. This
provides a strong grip while effectively preventing damage to the ADSS cable's outer sheath caused by excessive compression or aeolian vibration.

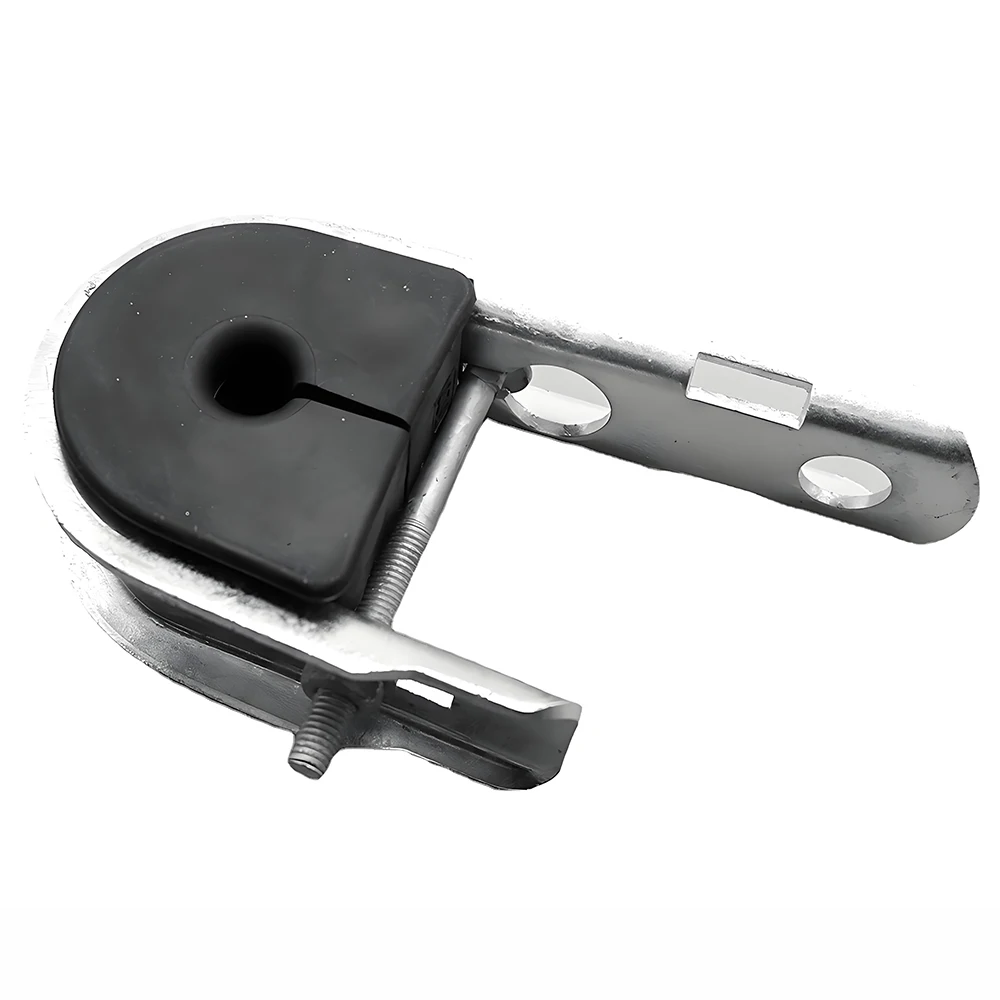

13KN ADSS Cable Suspension Clamp With Neoprene Insert
13KN ADSS Cable Suspension Clamp With Neoprene Insert
Corrosion Resistance and Durability:
The main body is made of high-strength aluminum alloy or stainless steel, treated with hot-dip galvanizing or anodizing for excellent corrosion and aging resistance.
Flexible Connection Options:
Available in single-eye (for direct connection with UB-type clevis) and double-eye (for connection with twin plates or special angle adjustments) versions, adapting to various tower cross-arms and installation accessories.

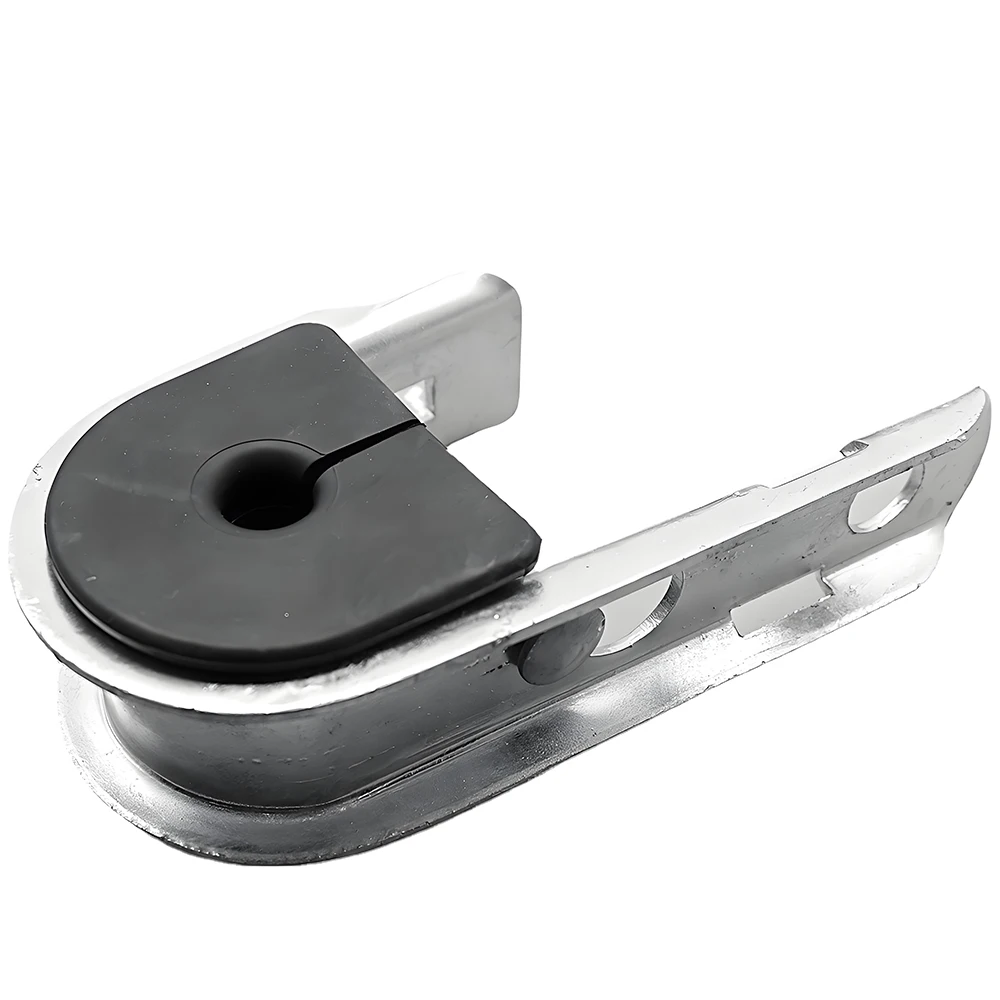

13KN ADSS Cable Suspension Clamp With Neoprene Insert
13KN ADSS Cable Suspension Clamp With Neoprene Insert
Efficient Stress Distribution:
The curved rubber liner conforms closely to the cable, evenly distributing stress to prevent localized indentation and microbending losses.
All-Dielectric Insulation:
Contains no metallic conductive parts, suitable for installation on the same poles as high-voltage transmission lines, ensuring electrical and communication safety.
Application Scenarios
Terminal Tower Anchoring: Used at the beginning and end of ADSS cable routes to bear full cable tension and prevent cable retraction.
Large Angle Towers: Functions as the fixing fitting on tension towers where standard suspension clamps cannot handle lateral tension due to significant line angles.
Splice Towers: Used on towers requiring cable splicing to secure the excess cable length and cable ends on both sides of the splice closure.
Downlead Fixing: Used in conjunction with downlead clamps for the final anchoring of the cable as it descends from the tower top to the ground-based splice box.
Electric Power Communication Networks: For suspension fixing of ADSS cables installed on high-voltage transmission line towers.
Metropolitan Area Networks / Access Networks: For cable installation and fixation on urban poles, masts, and towers.
Field Communication: Support for communication cables in complex terrains such as mountainous areas, oil fields, and mines.
New Energy Projects: Installation and fixation of communication cables within wind farms and solar power plants.
Installation Instructions

Pre-Installation Check: Select the appropriate J-type clamp size based on the cable's outer diameter. Inspect the inner wall of the clamp and inserts for smoothness and absence of burrs.
Cable Insertion and Positioning:
For Open Type: Loosen the securing nuts, open the J-hook, and place the cable into the groove, ensuring the cable sheath fits snugly against the liner.
For Through Type: Thread the cable through the main body of the clamp and mark the intended position on the cable.
Tightening and Clamping:
Close the pressure plate or fasten the J-type opening. Tighten the nuts alternately and evenly according to the specified torque (typically 20-40 N·m). Avoid overtightening to prevent crushing the cable.
Check that the cable shows no signs of slipping and ensure the liner completely envelops the cable without twisting.
Tower Connection: Connect the single or double eye at the end of the J-type clamp to the tower's cross-arm or fixing point using connecting fittings like U-bolts or right-angle clevises.
Cooperation & Services
Customization Services:
Supports personalized customization. Product parameters can be adjusted according to the specific requirements of customer projects to meet non-standard scenario applications.
OEM/ODM Cooperation:
Professionally undertakes OEM/ODM orders. Can conduct product development, production, and branding according
to the customer's brand requirements and technical standards, providing a one-stop customized solution.
Full Technical Support:
Equipped with a professional technical team to provide customers with full-process technical guidance, including construction scheme design, on-site installation consultation, fiber testing, fault troubleshooting, and other professional services.
Sample Support:
New customers can apply for free sample testing. Sample specifications can be customized according to customer needs to ensure the product perfectly matches project cabling requirements.
Construction Support Services:
Can recommend cooperative professional fiber optic construction teams to provide customers with integrated services including cable laying, splicing, and debugging.
Quality Assurance and After-Sales Service

Strict Quality Control Before Shipment:
The entire production process follows the ISO9001 quality system standards. Each batch undergoes multiple inspections before shipment, ensuring product quality from the source.
Formal Quality Warranty:
Within the product warranty period, all performance indicators are guaranteed to meet the requirements of this specification. If quality issues (non-human, non-external force damage) occur, after professional testing confirmation,
customers will be provided with free replacement or replenishment services.
Quick After-Sales Response:
A dedicated after-sales service team is established. Customers can consult at any time regarding any issues encountered during product use or construction. The after-sales team will provide professional solutions within 24 hours.
Lifetime Technical Guidance:
Provides customers with free lifetime technical guidance. Even after the product warranty expires, technical questions regarding product use, maintenance, fault troubleshooting, etc., can still be answered for free.
Logistics Support:
Cooperates with major national logistics companies to provide professional fiber optic product transportation services, ensuring safe and on-time delivery, with full coverage even in remote areas.


  • Weight 12KGS-20KGS
  • Strength 5-13KN
  • Cable Dia 5mm-20mm
  • Installation With SS Strap
  • Rubber UV Resistance
  • Connection Banding With Strap
