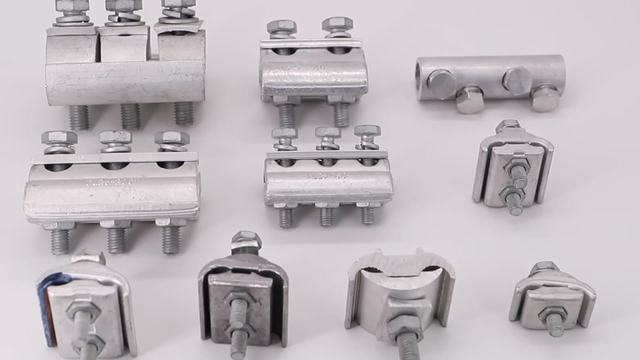

Tooth Type Aluminum Parallel Groove Clamps
Parallel Groove Connector Aluminum PG Clamp
| Usage | Copper-Aluminium Parellel Groove Clamp(CAPG) is used for the Non-bearing connection and offset of Aluminium stranded wire, copper cpre aluminium steanded wire, copper brand wire, it is used with insulating cover for the effect of protective and insulation. |
| Raw Material | Body:High strength, corrosion resistant aluminium alloy and forging bimetal Readle bar:Aluminium alloy Spring washer/gasket:Iron DIN6796, corrosion resistant Bolt:Iron8.8, DIN933, Dacromet plating The bolt and nut can change to stainless steel material as customer's requirement |
| Structural Features | 1.Choosing the high strength, corrosion resistant aluminium alloy and forging bimetal. 2.Tooth type, small contact resistance, reliable connection. 3.Siamesed parts, will not fall any part during assembly. 4.Hold a large area of arc, the contact surface will be closer which will improve the grip strength between clamps and conductors. |
Products Description
| Item | Cable Range | Bolts |
| CAPG-A1 | Cu 6-50 Al 16-70 | 1×M8×40 |
| CAPG-A2 | Cu 10-95 Al 25-150 | 1×M8×45 |
| CAPG-B1 | Cu 6-50 Al 16-70 | 2×M8×50 |
| CAPG-B2 | Cu 10-95 Al 25-150 | 2×M8×60 |
| CAPG-B3 | Cu 25-185 Al 35-200 | 2×M10×60 |
| CAPG-C1 | Cu 6-50 Al 16-70 | 3×M8×45 |
| CAPG-C2 | Cu 10-95 Al 25-150 | 3×M8×50 |
| CAPG-C3 | Cu 25-185 Al 35-240 | 3×M10×60 |
| CAPG-C4 | Cu 35-240 Al 35-300 | 3×M10×70 |
